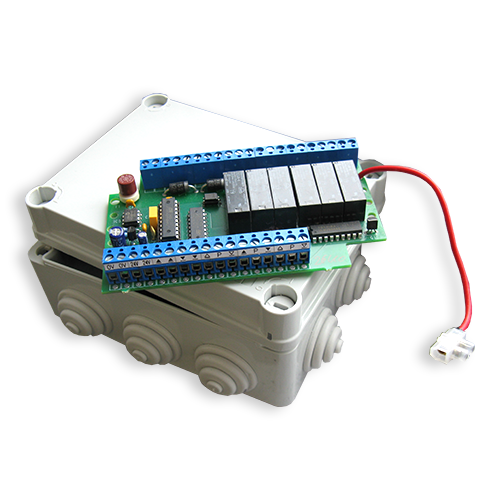

MCU conservatory 24/230

Function description

The control unit mcu conservatory is used in conservatories or in buildings where the electrically controlled sun protection is mounted above up to two electrically operated windows and the sun protection may only be operated when the windows are closed. The control unit is used to control one sun protection motor and two window motors with max. 250V~. The control line is looped, i.e. led from control unit to control unit and connected to it on site. The control voltage is supplied via a preceding power supply unit.

The sunshade is operated via a control unit and/or push-button switch. Before the sun protection is lowered or raised, the electronics check whether a window is open and closes it. Only when the window is closed is the sun protection moved in the respective direction. A window is only opened when the sun protection is raised. No windows are opened when the sun protection is closed. Signals at the output are only executed as long as they are present.

Before the sun protection is activated via the button input, the electronics also check whether a window is open and closes it. Only when the window is closed is the sun protection moved in the respective direction. When the sun protection is completely open or closed, the windows can be raised/closed and lowered/closed via the button input. By holding the button, the motors are operated as long as the button is held or until the limit switches are reached. When the button is released, the movement is stopped.
