MCU PL 1gang 24/24 RM-R

The motor of your blind is controlled by a time logic via the MCU PL 1gang 24/24 FM-R. This means that in addition to normal operation, your blind moves to the end position after pressing for 2 seconds. The blind stops by pressing the opposite button. The 1-gang 24 V control unit guarantees easy operation and is also easy to install thanks to its space-saving case.

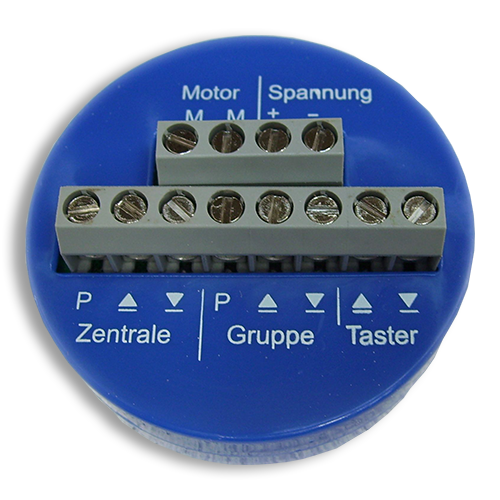

control unit 1gang 24 V round

Technical data

  • Dimensions: Ø 52 x H29 mm
  • Supply voltage: 24 V DC
  • Current consumption: 14 mA DC
  • Rated voltage: 24 V DC
  • Rated current: 3 A AC
  • Control voltage: 24 V DC
  • Connection type: screw terminals
  • Protection class: Depending on case
Data sheet

Function description

The MCU PL 1gang 24/24 FM-R is suitable for 24 V motors. Due to its space-saving design, it can be easily flush-mounted. It enables convenient operation thanks to the integrated time logic. This means that if the push-button is held down for 2 seconds, the blind automatically moves to the end position. Pressing in the opposite direction stops the blind.



Article Name Control type
200081 MCU PL 1gang 24/24 FM-R Positive
200100 MCU PL 1gang 24/24 N FM-R Negative
